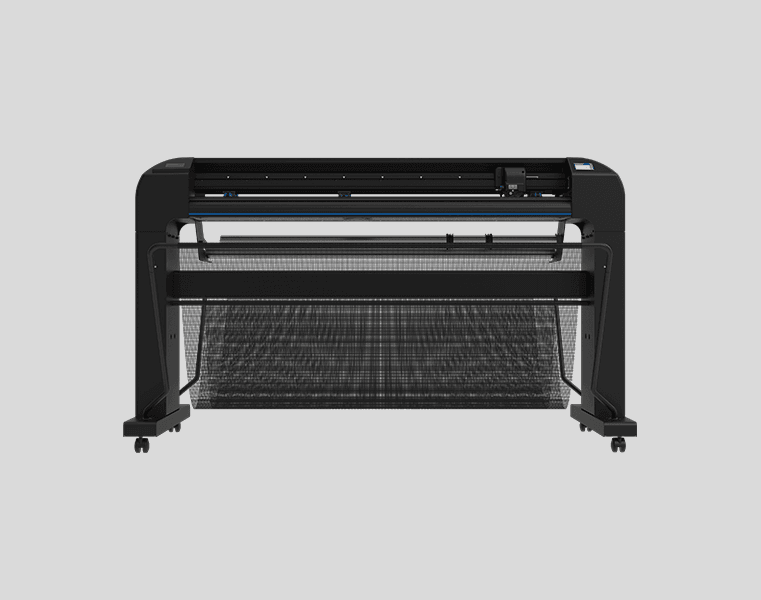

S3T120
mid wiDth. maximum control.
The S3T 120 brings tangential precision to the core of your production floor. It handles colored films, laminated prints and detailed graphics with a blade that moves deliberately, creating cuts that stay true, even when the material resists.
Materials
Made for detail critical, mid format work
The S3T‑120 excels when your shop produces:
Colored sign vinyl with small lettering
Laminated prints that require controlled pressure
Detailed logos and graphics with tight curvature
Stencil films, PPF and thicker coated materials
Specifications
What's in your S3T120
S3T120
Maximum media width
127cm / 50"
Cutting technology
Tangential cutting knife
Max cutting thickness
1.2 mm / 0.047"
Pinch rollers
3
Dimensions
Designed for 120 cm / 47.2-inch printer lanes and mid format workspaces
Cutting force
Up to 1kg for thicker or specialty materials
Print registration
OPOS mark reading for precise contour tracking
Compensation
OPOS XY technology to adjust cut path to follow potential deformations in the graphic
Connectivity
USB, Wi-Fi and Ethernet
Software
GoSign workflow management, compatible with over 50 RIP Softwares
Benefits
Why you'll love your S3T120
True tangential control, right where you need it
The S3T‑120 brings certainty to materials and designs that demand more than drag‑knife movement.
Read more
Clean edges. Confident detail
Corners stay square. Small shapes stay intact.
Your most detailed decal work remains consistent across the entire roll.
Read more
Strength without struggle
Laminates, stencil films and thicker coated media cut cleanly, without blade deflection or inconsistent depth.
Read more
Built for everyday precision
The width hits the sweet spot: large enough for real signage work, compact enough for controlled handling.
The result is a cutter that feels balanced, predictable and always ready.
Read more
Keeps operators in flow
No heavy adjustments. No guesswork.
The machine reads the job, aligns itself and moves with a familiar rhythm that supports fast production.
Read more
Other S3T sizes
Looking for a different cutter?
S3T75
Maximum media width
74,2cm / 29.2"
Cutting technology
Tangential cutting knife
Max cutting thickness
1.2 mm / 0.047"
Pinch rollers
3
S3T120
Maximum media width
127cm / 50"
Cutting technology
Tangential cutting knife
Max cutting thickness
1.2 mm / 0.047"
Pinch rollers
3
S3T140
Maximum media width
135cm / 54"
Cutting technology
Tangential cutting knife
Max cutting thickness
1.2 mm / 0.047"
Pinch rollers
4
S3T160
Maximum media width
158cm / 62.2"
Cutting technology
Tangential cutting knife
Max cutting thickness
1.2 mm / 0.047"
Pinch rollers
4
